July 2006

PSB Image T45 Loudspeakers: Measurements

PLEASE NOTE: Our standard is to provide the THD+N measurement at 90dB with a measuring distance of 2 meters (within the anechoic chamber). Since this speaker produced low distortion levels under those conditions, we have added a second measurement performed at 95dB to give an indication of performance under higher-output conditions.

All  loudspeaker measurements are performed independently at the National Research Council of Canada. Please click to learn more about how we test loudspeakers there. All measurement data and graphical information displayed below are the property of SoundStage! and Schneider Publishing Inc. Reproduction in any format is not permitted.

Microphone measuring position: between tweeter and top woofer

Grille: off

Sensitivity: 88.0dB (averaged 300Hz-3kHz, 2.83V/1m)

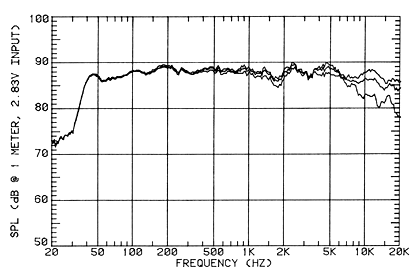

Frequency response, 20Hz - 20kHz (measured @ 2m, plotted @ 1m)

Top curve: on-axis response
Middle curve: 15 degrees off-axis response
Bottom curve: 30 degrees off-axis response

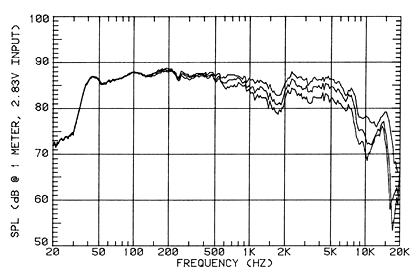

Frequency response, 20Hz - 20kHz (measured @ 2m, plotted @ 1m)

Top curve: 45 degrees off-axis response
Middle curve: 60 degrees off-axis response
Bottom curve: 75 degrees off-axis response

Listening Window, 20Hz - 20kHz (measured @ 2m, plotted @ 1m)

Response curve is an average of five measurements:
on-axis, 15 degrees left and right off-axis,
15 degrees up and down off-axis

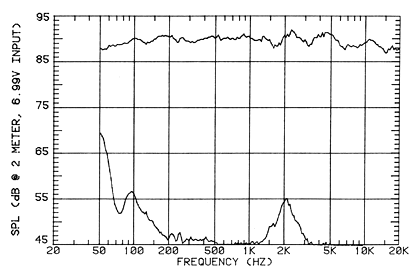

THD+N @ 90dB, 50Hz - 10kHz (measured @ 2m)

Top curve: frequency response @ 90dB SPL
Bottom curve: THD+N @ 90dB (50Hz - 10kHz)

Additional Measurement

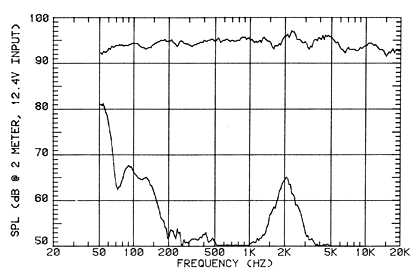

THD+N @ 95dB, 50Hz - 10kHz (measured @ 2m)

Top curve: frequency response @ 95dB SPL
Bottom curve: THD+N @ 95dB (50Hz - 10kHz)

Difference @ 90dB, 50Hz - 20kHz (measured @ 2m)

Curve: difference from 70dB at 90dB

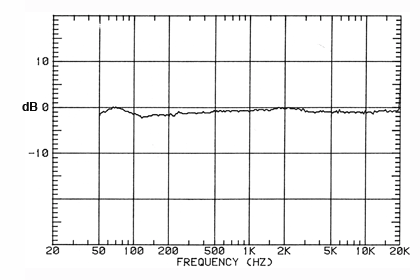

Difference @ 95dB, 50Hz - 20kHz (measured @ 2m)

Curve: difference from 70dB at 95dB

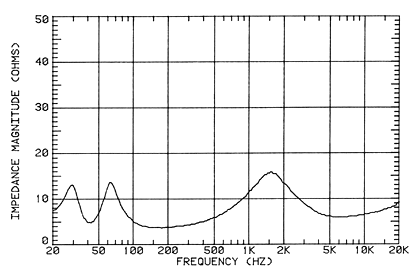

Impedance curve

Vertical axis: impedance
Horizontal axis: frequency

Electrical phase

Vertical axis: phase
Horizontal axis: frequency
