Reference 3A MM DeCapo Loudspeakers: Measurements

All  loudspeaker measurements are performed independently at the National Research Council of Canada. Please click to learn more about how we test loudspeakers there. All measurement data, including graphical information displayed below, is the property of SoundStage!. Reproduction in any format is not permitted.

Chart 1 - Frequency Response and Sensitivity

Sensitivity: 89.0dB (averaged 300Hz-3kHz, 2.83V/1m)

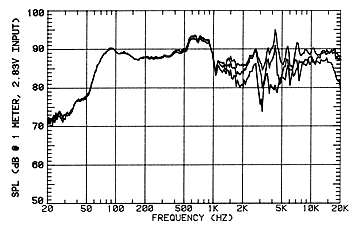

Frequency response, 20Hz - 20kHz (measured @ 2m, plotted @ 1m)

Top curve: on-axis response
Middle curve: 15 degrees off-axis response
Bottom curve: 30 degrees off-axis response

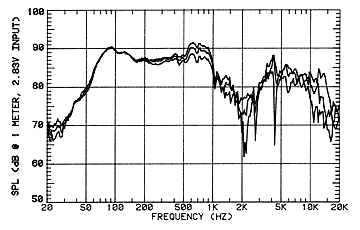

Frequency response, 20Hz - 20kHz (measured @ 2m, plotted @ 1m)

Top curve: 45 degrees off-axis response
Middle curve: 60 degrees off-axis response
Bottom curve: 75 degrees off-axis response

Chart 2 - Listening Window

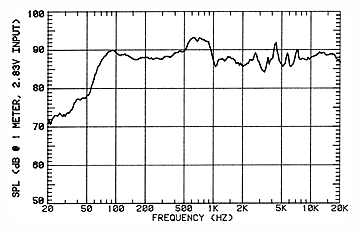

Listening Window, 20Hz - 20kHz (measured @ 2m, plotted @ 1m)

Response curve is an average of five measurements:
on-axis, 15 degrees left and right off-axis,
15 degrees up and down off-axis

Chart 3 - Total Harmonic Distortion + Noise

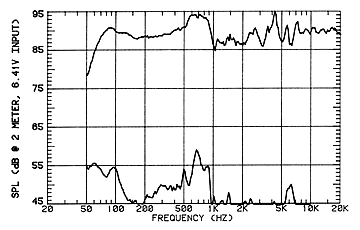

THD+N @ 90dB, 50Hz - 10kHz (measured @ 2m)

Top curve: frequency response @ 90dB SPL
Bottom curve: THD+N @ 90dB (50Hz - 10kHz)

Chart 4 - Impedance Magnitude Variation With Frequency

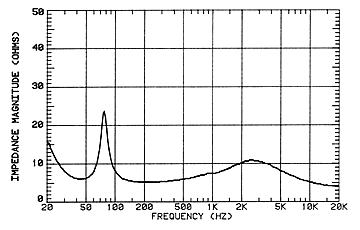

Impedance curve

Vertical axis: impedance
Horizontal axis: frequency
