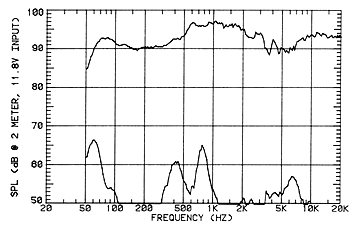

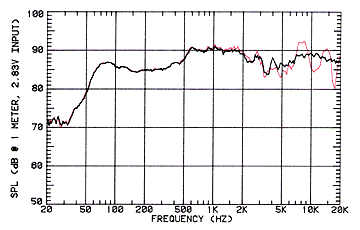

February 2002 Krell LAT-2 Loudspeakers: MeasurementsPLEASE NOTE: Our standard is to provide the THD+N measurement at 90dB with a measuring distance of 2 meters (within the anechoic chamber). Since this speaker produced low distortion levels under those conditions, we have added a second measurement performed at 95dB to give an indication of performance under higher output conditions. In addition, we have provided an additional on-axis frequency response measurement with the grille off and on (all measurements otherwise have the grille off). All loudspeaker measurements are performed independently at the National Research Council of Canada. Please click to learn more about how we test loudspeakers there. All measurement data, including graphical information displayed below, is the property of SoundStage!. Reproduction in any format is not permitted.

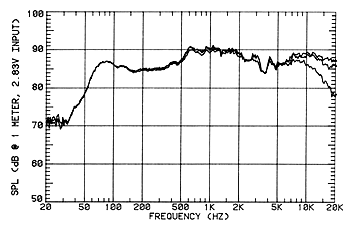

Microphone measuring position: center of woofer (manufacturer specified), no grille Frequency response, 20Hz - 20kHz

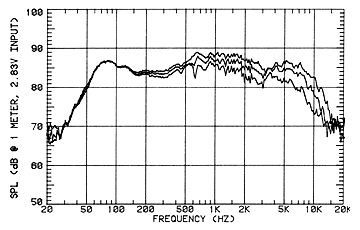

(measured @ 2m, plotted @ 1m) Frequency response, 20Hz - 20kHz
(measured @ 2m, plotted @ 1m) Additional
Measurement

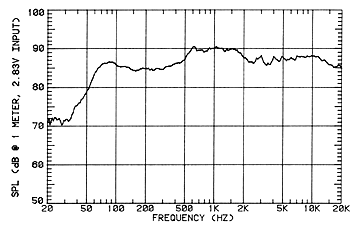

Listening Window,
20Hz - 20kHz (measured @ 2m, plotted @ 1m)

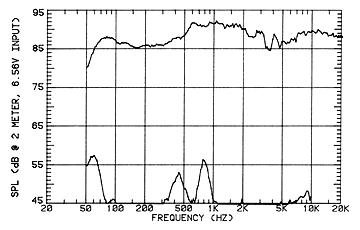

THD+N @ 90dB, 50Hz -
10kHz (measured @ 2m) Additional
Measurement

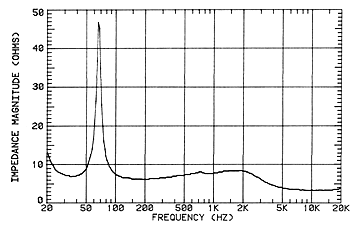

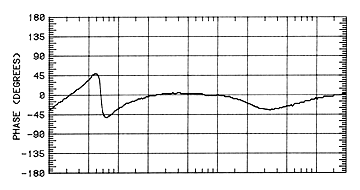

Impedance curve Electrical phase
|
||||
