September 2002 Axiom Audio Millennia M2i Loudspeakers: MeasurementsAll loudspeaker measurements are performed independently at the National Research Council of Canada. Please click to learn more about how we test loudspeakers there. All measurement data, including graphical information displayed below, is the property of SoundStage!. Reproduction in any format is not permitted.

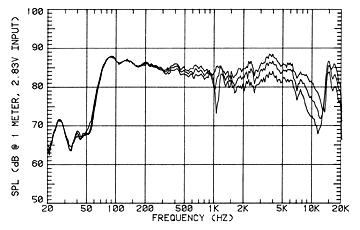

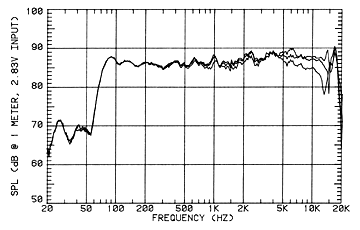

Microphone measuring position: center of tweeter Frequency response, 20Hz - 20kHz
(measured @ 2m, plotted @ 1m) Frequency response, 20Hz - 20kHz
(measured @ 2m, plotted @ 1m)

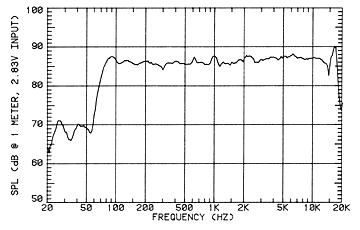

Listening Window,
20Hz - 20kHz (measured @ 2m, plotted @ 1m)

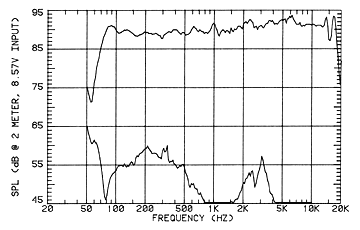

THD+N @ 90dB, 50Hz -
10kHz (measured @ 2m)

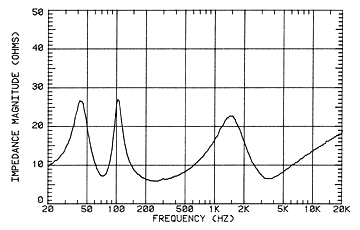

Impedance curve Electrical phase
|
||||
