Mirage MRM-1 Loudspeakers: Measurements

All  loudspeaker measurements are performed independently at the National Research Council of Canada. Please click to learn more about how we test loudspeakers there. All measurement data, including graphical information displayed below, is the property of SoundStage! Reproduction in any format is not permitted.

Chart 1 - Frequency Response and Sensitivity

Frequency response, 20Hz - 20kHz (measured @ 2m, plotted @ 1m)
Loudspeaker sensitivity (averaged 300Hz - 3kHz, 2.83V/1m)

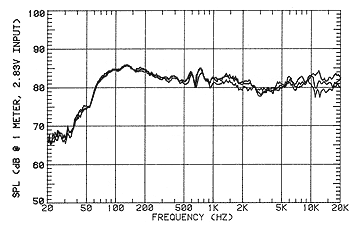

Top curve: on-axis response
Middle curve: 15 degrees off-axis response
Bottom curve: 30 degrees off-axis response
Sensitivity: 82dB

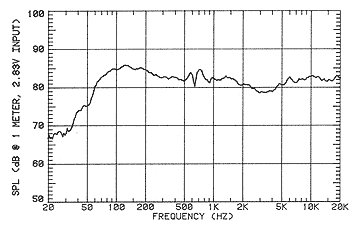

Chart 2 - Listening Window

Listening Window, 20Hz - 20kHz (measured @ 2m, plotted @ 1m)

Response curve is an average of five measurements:
on-axis, 15 degrees left and right off-axis,
15 degrees up and down off-axis

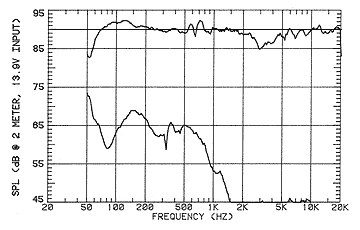

Chart 3 - Total Harmonic Distortion + Noise

THD+N @ 90dB, 50Hz - 10kHz (measured @ 2m)

Top curve: frequency response @ 90dB SPL
Bottom curve: THD+N @ 90dB (50Hz - 10kHz)

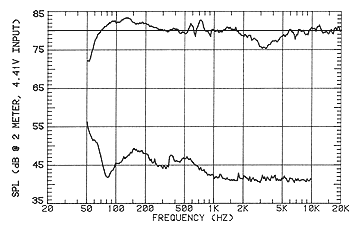

THD @ 80dB, 50Hz - 10kHz (measured @ 2m)

Top curve: frequency response @ 80dB SPL
Bottom curve: THD+N @ 80dB (50Hz - 10kHz)

Chart 4 - Impedance Magnitude Variation With Frequency

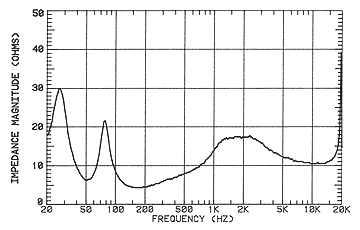

Impedance curve

Vertical axis: impedance
Horizontal axis: frequency
